Product specifications

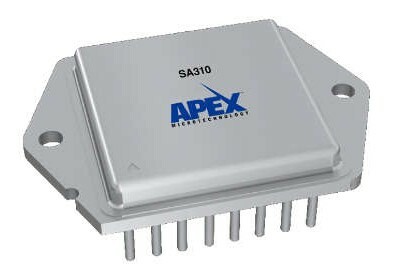

SA310KR - 650V, >400 kHz Silicon Carbide 3phase H-Bridge Module

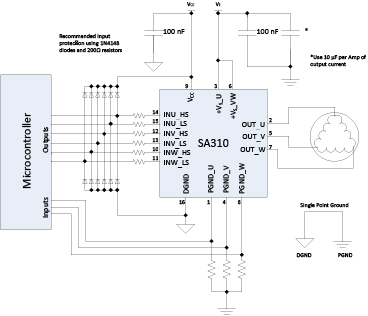

The SA310 is a fully integrated three-phase driver designed primarily to drive Brushless DC (BLDC) and Permanent Magnet Synchronous (PMSM) motors or DC/AC converters.
The module uses Silicon Carbide MOSFET technology to improve efficiency over other devices in its class.
Three independent half-bridges provide up to 80A peak output current under direct microcontroller or DSC control.
SA310 is built on a thermally conductive, but electrically isolated substrate to provide the most versatility and ease in heatsinking.
The amplifier protection features include Under-voltage lockout (UVLO) function and active Miller clamping to reduce switching noise and improve reliability.
Also included in the module are Silicon Carbide Schottky Barrier free-wheeling diodes to protect the body diode of each MOSFET.
No external output protection diodes are required. The SA310's integrated gate drivers provide transformer isolation between the inputs and high-voltage outputs.
- APEX Microtechnology product -
