Product specifications
EK30 - Evaluation Kit for PA07, PA08, PA09, PA85, PA88, PA96
** This EK does NOT contain the actual amplifier device, so that needs to be ordered separately **

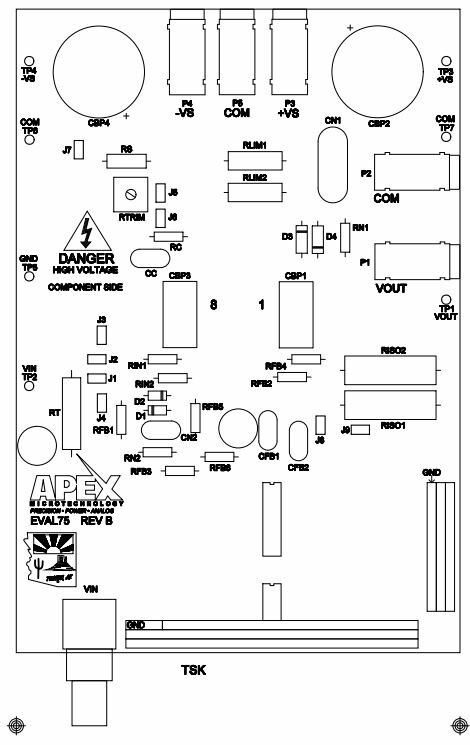

This easy to use kit provides a platform with good circuit board layout and grounding to evaluate Power Amplifiers PA07, PA08, PA09, PA85, PA88, and PA96. With additional prototype area, it is flexible enough to analyze a multitude of standard or proprietary circuit configurations. All components are provided with the kit. Similar circuitry is used for evaluation and the circuit for a particular package can be changed using jumpers. External connections to the evaluation kit can be made through the connectors at the edges of the circuit. The circuit provides an input line termination of 50O.
The PA07 and PA09 are configured for a gain of 12. The PA08 and PA96 are configured for a gain of 21. The PA85 and PA88 are configured for a gain of 53. This evaluation kit provides flexibility for modifying the gain, in inverting or non-inverting mode.
- APEX Microtechnology product -
