Product specifications

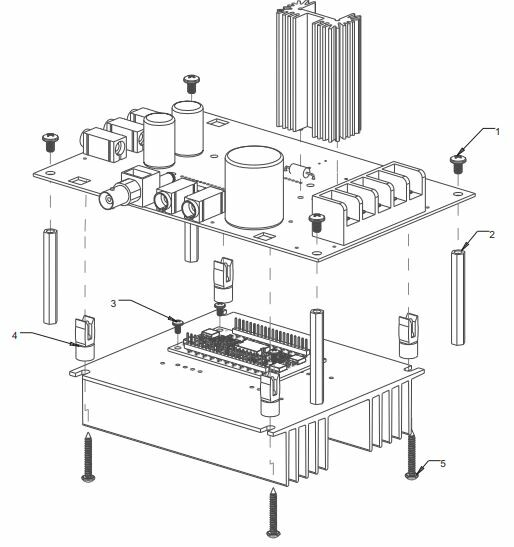

EK40 - Evaluation Kit for MP106FC
** This EK does NOT contain the actual amplifier device, so that needs to be ordered separately **
This easy to use kit provides a platform with good circuit board layout and grounding to evaluate MP106 Power Amplifier.
The evaluation board provides options to install a load capacitor and series resistor to evaluate the MP106 performance with a print head.
All necessary components are provided with the kit.
External connections to the evaluation kit can be made through the connectors at the edges of the circuit.
The circuit provides a line termination of 50O.
- APEX Microtechnology product -
