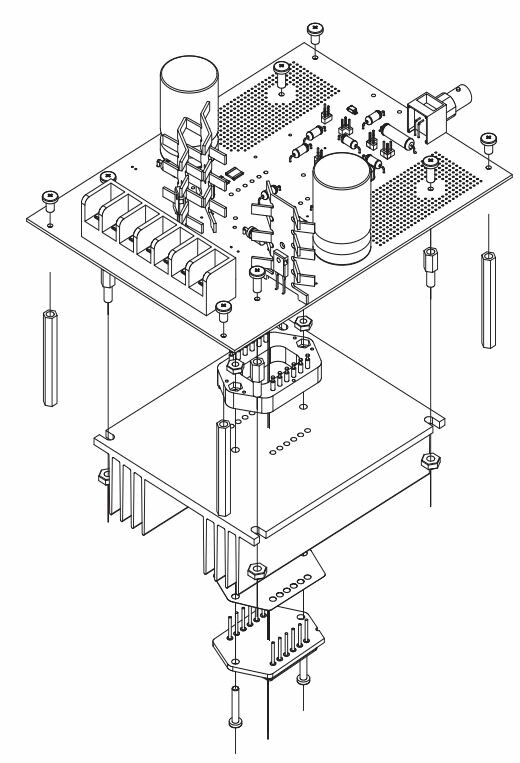

EK45 - Evaluation Kit for PA04 and PA05
** This EK does NOT contain the actual amplifier device, so that needs to be ordered separately **
This user-configurable kit provides a platform to evaluate the high-current linear power operational
amplifiers, PA04 and PA05. The kit features interchangeable inverting/non-inverting capabilities, input and
output transient protection, a kelvin-sense current limit with foldback considerations, isolated shut-down /
sleep mode control, breadboarding area for building on-board boost-supplies, and a current-source option.
All necessary components and hardware are provided. External high-current connections to the evaluation
kit can be made through the terminal strip at the edge of the board. The input BNC connector has a line termination
of 50 O.
