EK24 - Evaluation Kit for PA164

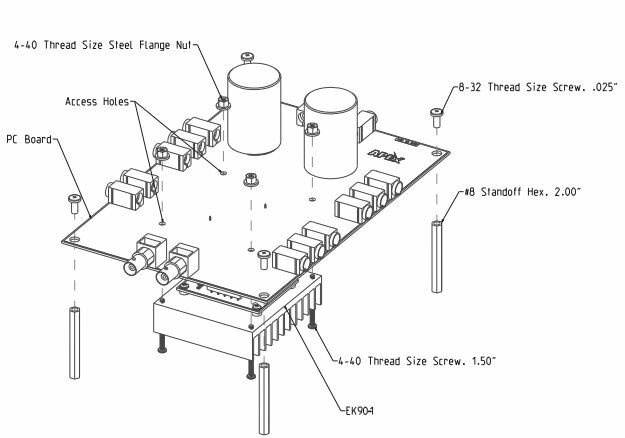

This easy to use kit provides a platform with good circuit board layout and grounding to evaluate PowerAmplifier PA164. With additional prototype area, it is flexible enough to analyze a multitude of standard or proprietary circuit configurations. All components are provided with the kit.
The evaluation kit consists of a PA164, which is mounted on a daughter board along with input protection diodes, power supply bypass capacitors, and compensation capacitors.
The Evaluation kit also consists of few passive components and connectors that should be soldered on the board. These components are not presoldered so as to provide flexibility to the user for changing amplifier configuration as per the users application.
