Product specifications

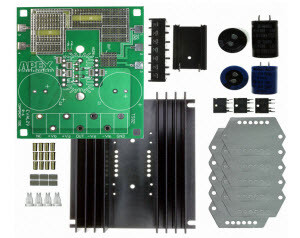

EK27 - Evaluation Kit for PA50, PA52
** This EK does NOT contain the actual amplifier device, so that needs to be ordered separately **
This easy-to-use kit provides a platform for the evaluation of inear power ampli?ers circuits using the PA50/PA52 pin out.
With ample breadboarding areas it is ?exible enough to analyze a multitude of standard or proprietary circuit con?gurations. Critical connections for power supply bypassing are pre-wired. Components not usually readily available in engineering labs are provided. External connection to the evaluation kit can be made via the terminal block and terminal pads at the edges of the circuit board. The terminal pads are suitable for soldering standard banana jacks or direct soldering of wires.
- APEX Microtechnology product -
