EK36 - Evaluation Kit for PA99
** This EK does NOT contain the actual amplifier device, so that needs to be ordered separately **

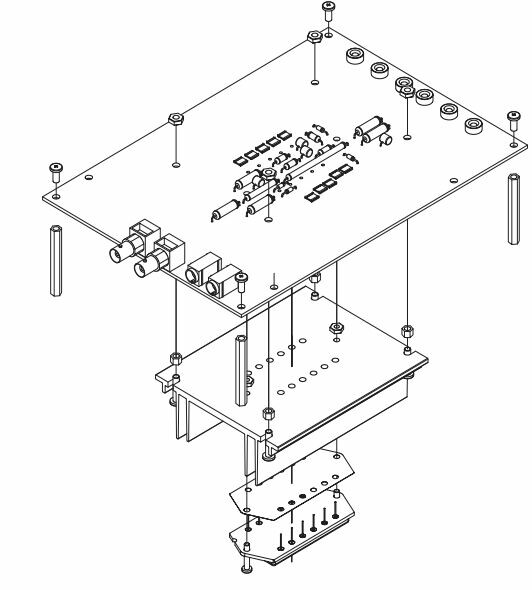

This high-voltage Evaluation kit provides a robust PCB with ideal circuit layout and grounding in order to evaluate the Apex PA99 linear power operational amplifier. With its high-voltage, modest package size, and thermal sensing capabilities, the PA99 includes many considerations in its evaluation board. This ruggedized testing platform utilizes many design techniques that make it easy to analyze the PA99 under a wide variety of conditions. All necessary components (except DUT) are included in the kit.
This evaluation kit provides flexibility for modifying gain in both inverting and non-inverting mode, as well as for use as a differential amplifier. There are also options for stability considerations such as isolation resistors, R-C snubber networks, feedback capacitors, noise gain compensation, and compensation capacitors.
- APEX Microtechnology product -
