Product specifications
EK42 - Evaluation Kit for PA15FL, PA341DW and PA441DW
** This EK does NOT contain the actual amplifier device, so that needs to be ordered separately **

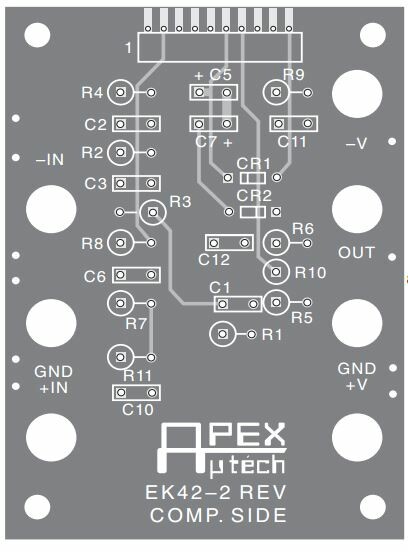

Fast, easy breadboarding of circuits using the PA341DW, PA441DW and the PA15 are possible with the EK42 PC board.
Mounting holes are provided and the provision for standard banana jacks simplifies connection and testing. The amplifier may be mounted horizontally or vertically. Components are labeled on both sides of the board for ease in probing. A multitude of circuit configurations are possible, so only several component locations have specific functions and will usually always be necessary.
- APEX Microtechnology product -
