Product specifications

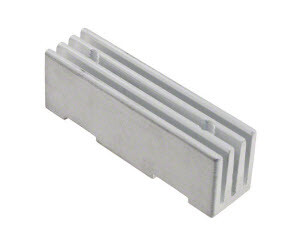

HS33 - Heatsink for DK and HQ Packages
Type ............................................ Board Level
Package Cooled ............................... -
Attachment Method .......................... Bolt On
Shape .......................................... Rectangular
Length ......................................... 1.500" (38.1mm)
Width .......................................... 0.400" (10.16mm)
Diameter ....................................... -
Height Off Base (Height of Fin) ............. 0.400" (10.16mm)
Power Dissipation @ Temperature Rise ... -
Thermal Resistance @ Forced Air Flow .... -
Thermal Resistance @ Natural .............. 16°C/W
Material ........................................ Aluminum
Material Finish .................................. Black Anodized
- APEX Microtechnology product -
