Product specifications

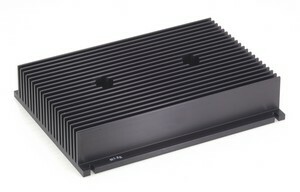

HS26 - Open Frame Heatsink
Type ............................................ Board Level, Vertical
Package Cooled ...............................-
Attachment Method .......................... Bolt On
Shape .......................................... Rectangular
Length ......................................... 9.000" (228.60mm)
Width .......................................... 6.62" (168.27mm)
Diameter ....................................... -
Height Off Base (Height of Fin) ............. 1.780" (45.21mm)
Power Dissipation @ Temperature Rise ... -
Thermal Resistance @ Forced Air Flow .... -
Thermal Resistance @ Natural .............. 0.50°C/W
Material ........................................ Aluminum
Material Finish .................................. Black Anodized
- APEX Microtechnology product -
