Product specifications

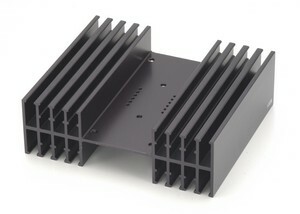

HS06 - Power DIP Heatsink
Type ............................................ Board Level
Package Cooled ............................... PDIP
Attachment Method .......................... Bolt On
Shape .......................................... Rectangular
Length ......................................... 5.421" (139.70mm)
Width .......................................... 6.25" (158.75mm)
Diameter ....................................... -
Height Off Base (Height of Fin) ............ 2.000" (50.80mm)
Power Dissipation @ Temperature Rise ... 20W @ 20°C
Thermal Resistance @ Forced Air Flow .... 0.3°C/W @ 600 LFM
Thermal Resistance @ Natural .............. 0.96°C/W
Material ........................................ Aluminum
Material Finish .................................. Black Anodized
- APEX Microtechnology product -
