Product specifications

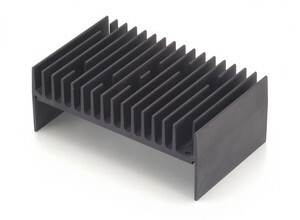

HS20 - Power SIP Heatsink
The HS20 is designed to be fastened vertically to a PC board with screws.
Type ............................................ Board Level
Package Cooled ............................... -
Attachment Method .......................... Bolt On
Shape .......................................... Rectangular
Length ......................................... 3.50" (88.90mm)
Width .......................................... 5.350" (135.89mm)
Diameter ....................................... -
Height Off Base (Height of Fin) ............ 2.276" (57.81mm)
Power Dissipation @ Temperature Rise ... -
Thermal Resistance @ Forced Air Flow .... -
Thermal Resistance @ Natural .............. 1.3°C/W
Material ........................................ Aluminum
Material Finish ................................. Black Anodized
- APEX Microtechnology product -
