Product specifications

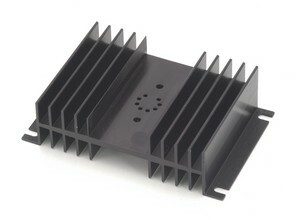

HS03 - TO-3 Heatsink
Type ............................................ Board Level
Package Cooled ............................... TO-3
Attachment Method .......................... Bolt On
Shape .......................................... Rectangular
Length ......................................... 3.000" (76.20mm)
Width .......................................... 4.750" (120.65mm)
Diameter ....................................... -
Height Off Base (Height of Fin) ............ 1.250" (31.75mm)
Power Dissipation @ Temperature Rise ... 15W @ 30°C
Thermal Resistance @ Forced Air Flow .... 1.0°C/W @ 200 LFM
Thermal Resistance @ Natural .............. 1.7°C/W
Material ......................................... Aluminum
Material Finish ................................. Black Anodized
- APEX Microtechnology product -
