Product specifications

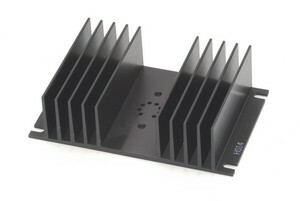

HS14 - TO-3 Heatsink
Type ............................................ Board Level
Package Cooled ............................... TO-3
Attachment Method .......................... Bolt On
Shape .......................................... Rectangular
Length ......................................... 3.000" (76.20mm)
Width .......................................... 4.812" (122.22mm)
Diameter ....................................... -
Height Off Base (Height of Fin) ............ 1.310" (33.27mm)
Power Dissipation @ Temperature Rise ... -
Thermal Resistance @ Forced Air Flow .... 1.0°C/W @ 200 LFM
Thermal Resistance @ Natural .............. 2°C/W
Material ........................................ Aluminum
Material Finish .................................. Black Anodized
- APEX Microtechnology product -
