Product specifications

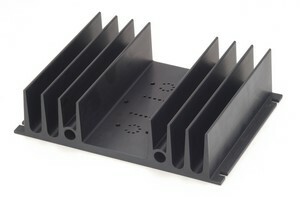

HS11 - TO-3 + Power DIP Heatsink
Type ............................................ Board Level
Package Cooled ............................... TO-3, PDIP
Attachment Method .......................... Bolt On
Shape .......................................... Rectangular
Length ......................................... 6.00" (152.40mm)
Width .......................................... 8.00" (203.20mm)
Diameter ....................................... -
Height Off Base (Height of Fin) ............ 2.000" (50.80mm)
Power Dissipation @ Temperature Rise ... -
Thermal Resistance @ Forced Air Flow .... -
Thermal Resistance @ Natural .............. 0.68°C/W
Material ........................................ Aluminum
Material Finish .................................. Black Anodized
- APEX Microtechnology product -
