Product specifications

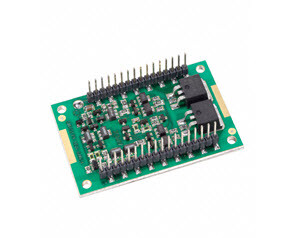

MP118FD - Power Operational Amplifier, 200V, 10A, 100W High Speed
The MP118 operational amplifier is a SMT amplifier component that provides a cost effective solution in many industrial applications. The MP118 offers outstanding performance that rivals much more expensive hybrid components, but yet has a footprint of only ˜26cm2 (4 in2). The 140kHz power bandwidth and 10A output of the MP118 makes it a good choice for piezo transducer drive applications. The MP118 is built on a thermally conductive but electrically insulating substrate that can be mounted to a heat sink MP118 is based on the MP108 design, but offers lower quiescent current consumption and new features for enhanced system protection. The newly introduced over-current protection and temperature monitoring circuitry will shut-down the system before any permanent damage occurs.
MP118 is based on the MP108 design, but offers lower quiescent current consumption and new features for enhanced system protection. The newly introduced over-current protection and temperature monitoring circuitry will shut-down the system before any permanent damage occurs.
Typical Application
With 140kHz power bandwidth and 10A of continuous output current, the MP118FD is a targeted choice for piezo drive applications, specifically inkjet print heads. Other applications include industrial instrumentation, manufacturing automation, reflectometers and ultra-sound transducer drives.
FEATURES:
• High voltage operation 200V
• High output current 10A continuous, 12A PEAK
• High power bandwidth 140kHz
• Low quiescent current 26mA typical
• High maximum internal power dissipation 100W
• Advanced circuit protection including a new over current shut down function
• Low cost
• Open frame packaging form factor
- APEX Microtechnology product -
