Product specifications

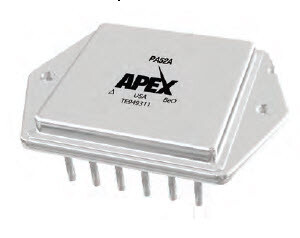

PA52A - High Internal Power Dissipation 400W, 80A Peak Power Amplifier
The PA52 is a MOSFET power operational amplifier that extends the performance limits of power amplifiers in slew rate and power bandwidth, while maintaining high current and
power dissipation ratings.
Boost voltage inputs allow the small signal portion of the amplifier to operate at a higher voltage than the high current output stage. The amplifier is then biased to achieve close linear swings to the supply rails at high currents for extra efficient operation.
The JEDEC MO-127 12-pin Power Dip™ package is hermetically sealed and isolated from the internal circuits. The use of compressible thermal washers and/or improper mounting torque will void the product warranty.
FEATURES
• HIGH INTERNAL DISSIPATION — 400 Watts
• HIGH CURRENT — 40A Continuous, 80A PEAK
• HIGH SLEW RATE — 50V/µs
• OPTIONAL BOOST VOLTAGE INPUTS
APPLICATIONS
• SEMI-CONDUCTOR TESTING
- APEX Microtechnology product -
