Product specifications
PA99 - 2500V, 50mA Power Operational Amplifier in Space-Saving Power-DIP Package
SPECS:
Wide supply operation – ±100V to ±1250V
Signal output voltage – up to 2400Vp-p
Programmable current limit
Output current – 50mA continuous
Temperature sensing

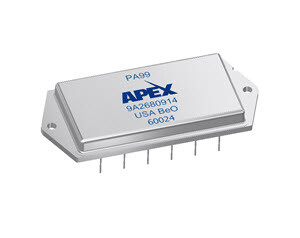

The PA99 is a hybrid high voltage power operational amplifier designed to target the expanded voltage supply demands of power supply and ATE applications. The PA99 is capable of operating on a maximum voltage supply of 2500V and provides output voltages beyond 2400Vpp. In terms of output current delivery, the PA99 can provide 50mA of continuous current, but the SOA must be managed for thermal conditions. Under typical operating conditions, the PA99 can achieve slew rates of +25V/µs. The PA99 is packaged in a 12-pin hermetically sealed PowerDIP package with a footprint measuring just 1.6” x 3.7”. The PowerDIP package enables efficient cooling of the amplifier when operating in conditions where power loss within the device is significant.
APLLICATIONS:
High Voltage Cable Testing
High Voltage Component Testing
Electrostatic Deflection
Electrophoresis
Electrospinning
Electrophotography
High Voltage DC Supply
Piezo Drivers
- APEX Microtechnology product -
