Product specifications
PA341DF - High Voltage Power Operational Amplifier, 350V, 120mApk
No Longer Supported For Design In. Please See PA441 series

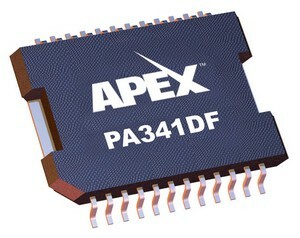

The PA341DF is packaged in a 24-pin PSOP (JEDEC MO-166) package with a metal heat slug that is isolated in excess of full supply voltage.
The PA341 is a high voltage monolithic MOSFET operational amplifier which achieves performance features previously found only in hybrid designs while increasing reliability. Inputs are protected from excessive common mode and differential mode voltages. The safe operating area (SOA) has no second breakdown limitation and can be observed with all type loads by choosing an appropriate current limiting resistor. External compensation provides the user flexibility in choosing optimum gain and bandwidth for the application.
- APEX Microtechnology product -
