Product specifications
MP204KK: Quad-Channel Power Amplifier with 7.5A Pulsed Output Current for Driving the Ricoh GEN4 and GEN5 or Similar Inkjet Printer Heads.

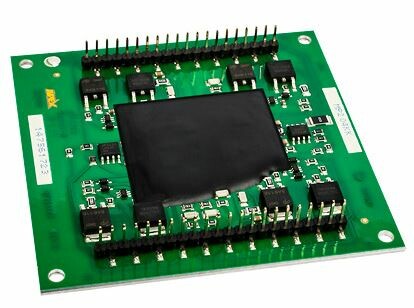

The MP204 is a four-channel power amplifier optimized for driving Ricoh GEN4 and GEN5 or similar inkjet printer heads. The MP204 features 7.5A of PEAK output current per channel, and 1.5A continuous. This amplifier has a set gain of 14V/V and features an open frame product design with a small footprint measuring just 80mm x 76.2mm and is capable of up to 20W of internal power dissipation per channel.
FEATURES:
Supply voltage 34V MAX
Short term output current 7.5A PEAK
Minimum slew rate 15V/µs
Internal power dissipation up to 20W per channel
Small footprint open frame packaging
Common voltage supply
Onboard system protection
- Apex Microtechnology product -
