Product specifications

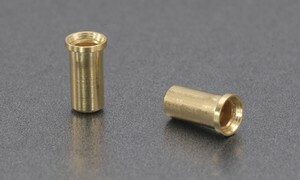

MS04 -Mating socket, PC Pin Receptacles, (12/Pk)
Specifications
Accepts Pin Diameter: .......... 0.048" ~ 0.064" (1.22mm ~ 1.63mm)
Contact Finish: .................. Gold
Contact Finish Thickness: ...... 30µin (0.76µm)
Contact Material: ................ Beryllium Copper
Features: ......................... Knockout Bottom
Flange Diameter: ................ 0.120" (3.05mm)
Length - Overall: ................ 0.213" (5.41mm)
Mounting Hole Diameter: ....... 0.100" (2.54mm)
Packaging: ........................ Bulk (12/PK)
Socket Depth: .................... 0.180" (4.57mm)
Tail Type: ......................... No Tail
Termination: ...................... Solder
- APEX Microtechnology product -
