Product specifications
VRE102M - Precision Voltage Reference, ±10V, ±1.2mV,-55°C to +125°C
Precision Voltage Reference provide ultrastable ±10 V outputs with ±0.5 mV initial accuracy and temperature coefficient as low as 0.5 ppm/°C over the full military temperature range. This improvement in accuracy is made possible by a unique, proprietary multipoint laser compensation technique. Significant improvements have been made in other performance parameters as well, including initial accuracy, warm-up drift, line regulation, and long-term stability, making the VRE100 series the most accurate and stable 10 V reference available.

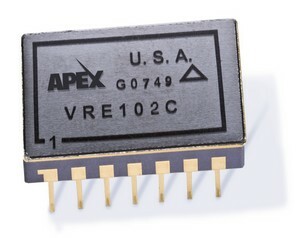

VRE102 devices are available in two operating temperature ranges, -25°C to +85°C and -55°C to +125°C, and two performance grades. All devices are packaged in 14-pin hermetic ceramic packages for maximum long-term stability. “M” versions are screened for high reliability and quality. Superior stability, accuracy, and quality make these references ideal for precision applications such as A/D and D/A converters, high-accuracy test and measurement instrumentation, and transducer excitation.
FEATURES
• Very High Accuracy: ±10 V Output, ±1.2mV
• Extremely Low Drift: 0.5 ppm/ºC (-55ºC to +125ºC)
• Low Warm-up Drift: 1.0 ppm Typical
• Excellent Stability: 6 ppm/1000 Hrs. Typical
• Excellent Line Regulation: 3 ppm/V Typical
• Hermetic 14-pin Ceramic DIP
• Military Processing Option
APPLICATIONS
• Precision A/D and D/A Converters
• Transducer Excitation
• Accurate Comparator Threshold Reference
• High Resolution Servo Systems
• Digital Voltmeters
• High Precision Test and Measurement Instruments
- APEX Microtechnology product -
