Product specifications

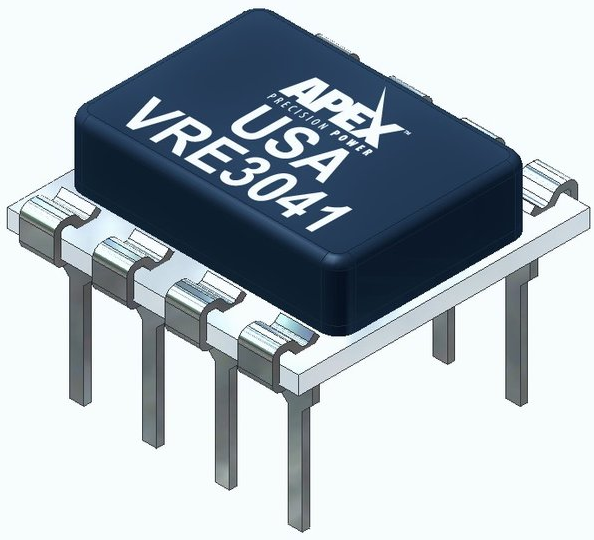

VRE3041AS - Precision Voltage Reference, +4.096V, 0.410mV, 0ºC to +70ºC
The VRE3041 is a low cost, high precision 4.096V reference that operates from +10V. The device features a buried zener for low noise and excellent long term stability. Packaged in an 8 pin DIP and SMT, the device is ideal for high resolution data conversion systems.
The device provides ultrastable +4.096V output with ±0.4096 mV (.01%) initial accuracy and a temperature coefficient of 0.6 ppm/°C. This improvement in accuracy is made possible by a unique, patented multipoint laser compensation technique developed.
Significant improvements have been made in other performance parameters as well, including initial accuracy, warm-up drift, line regulation, and long-term stability, making the VRE3041 series the most accurate reference available.
For enhanced performance, the VRE3041 has an external trim option for users who want less than 0.01% initial error. For ultra low noise applications, an external capacitor can be attached between the noise reduction pin and the ground pin.
The VRE3041 is recommended for use as a reference for 14, 16, or 18 bit data converters which require an external precision reference. The device is also ideal for calibrating scale factor on high resolution data converters. The VRE3041 offers superior performance over monolithic references.
FEATURES
• 4.096 V Output ± 0.409 mV (.01%)
• Temperature Drift: 0.6 ppm/°C
• Low Noise: 3µV p-p (0.1Hz-10Hz)
• Low Thermal Hysteresis: 1 ppm Typ.
• ±15mA Output Source and Sink Current
• Excellent Line Regulation: 5 ppm/V Typ.
• Optional Noise Reduction and Voltage Trim
• Industry Standard Pinout
- APEX Microtechnology product -
